• Country
• France

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: France (INCONNU)

• Year
• 1934 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 291346

• Number of Tubes
• 5

• Valves / Tubes
• 6F7 6D6 75 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 125; 150; 200; 210; 225; 235; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

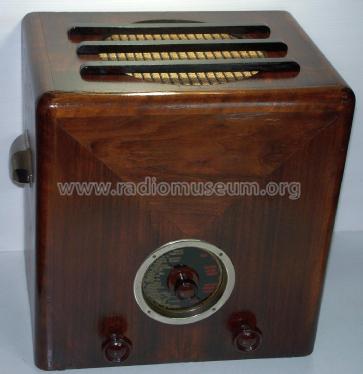

• Model: Inconnu - Unknown 52 Cadran 5601 - Importe d'Autriche - Unknown - CUSTOM BUILT: France

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 350 x 240 mm / 13 x 13.8 x 9.4 inch

• Notes

• Largeur sans poignées (largeur totale 380 mm).

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.
