Inconnu - Unknown 1 Cadran à tambours
Accessoires & Spécialités (AS); Paris
- Country
- France
- Manufacturer / Brand
- Accessoires & Spécialités (AS); Paris
- Year
- 1928 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 305791

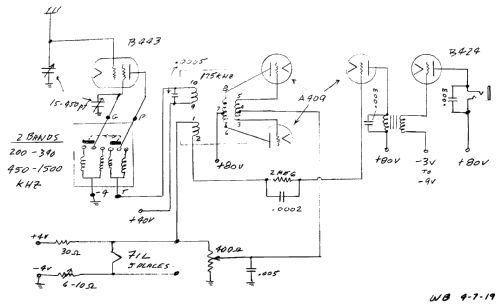

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 40 & 80 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: Inconnu - Unknown 1 Cadran à tambours - Accessoires & Spécialités AS;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 15 x 8 x 8 inch / 381 x 203 x 203 mm
- Notes
-
Coffret à cadre métallique, pannneaux en ébonite marbrée, dos en acier.
Il n'est pas certain que cette radio ait été fabriquée par AS.
- Author
- Model page created by Walter Brendecke. See "Data change" for further contributors.
