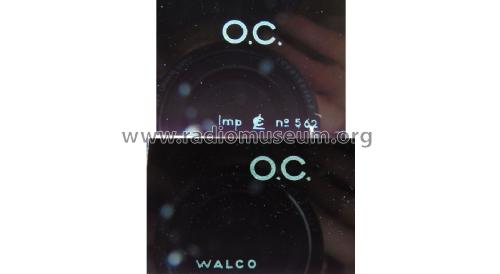

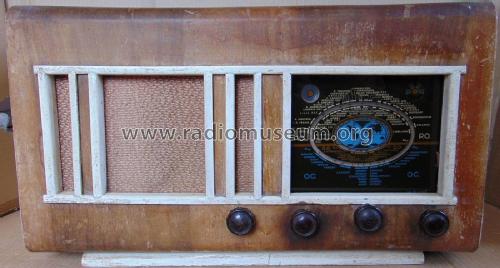

Inconnu - Unknown 84 (6 lampes) Cadran Walco No 562
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340571
- Number of Tubes
- 6
- Valves / Tubes
- 6E8 6K7 6Q7 unknown_Tube 6AF7 unknown_rectifier
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 84 Cadran Walco No 562 - Unknown - CUSTOM BUILT: France
- Dimensions (WHD)
- 560 x 320 x 280 mm / 22 x 12.6 x 11 inch
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
- Other Models
-
Here you find 267 models, 251 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unknown - CUSTOM BUILT: France (INCONNU)
Collections
The model Inconnu - Unknown 84 (6 lampes) is part of the collections of the following members.
