• Country
• France

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: France (INCONNU)

• Year
• 1934 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189722

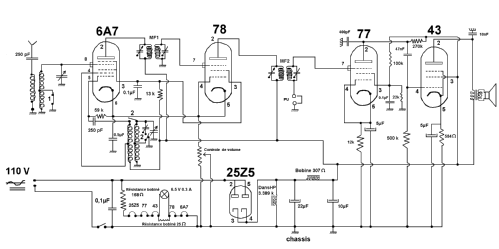

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 77 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 cm = 4.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Inconnu - Unknown 2 - Unknown - CUSTOM BUILT: France

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 285 x 220 x 180 mm / 11.2 x 8.7 x 7.1 inch

• Notes
• Attention danger d’électrocution, appareil tous courant, châssis relié au secteur!

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Author
• Model page created by Bekir Yurdakul. See "Data change" for further contributors.
