• Country
• France

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: France (INCONNU)

• Year
• 1924 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344303

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• TM TM TM TM

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

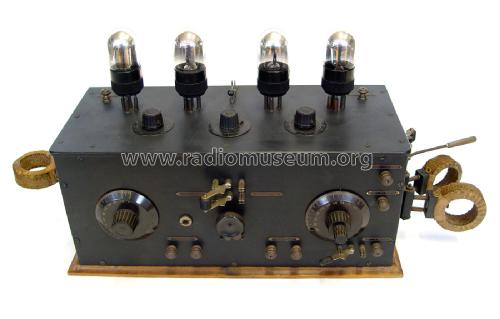

• Model: Récepteur à reaction Unknown - Inconnu 86 - Unknown - CUSTOM BUILT: France

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 600 x 280 x 200 mm / 23.6 x 11 x 7.9 inch

• Notes

• Récepteur à réaction.

• Author
• Model page created by Musée des Radios Museum. See "Data change" for further contributors.

• Other Models

• Here you find 267 models, 251 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
