Récepteur grand public à galène
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1925 ??
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 317027
Collection privée (réf.: 291 + 1048)
Collection privée (réf.: 291 + 1048)

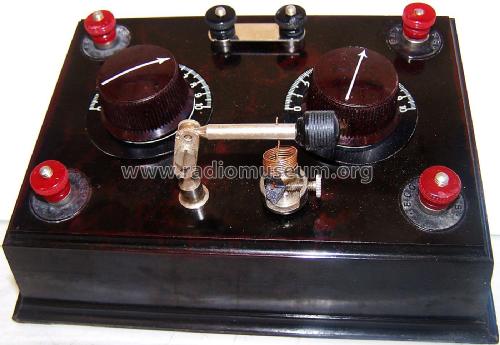

Unknown French Crystal set rear view

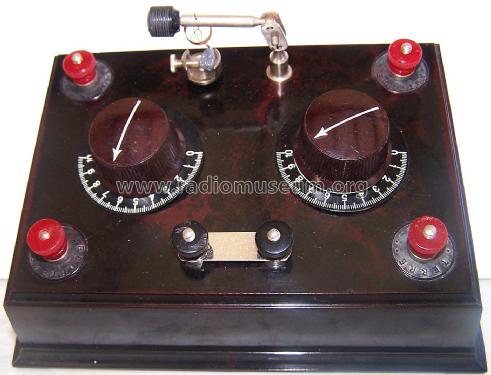

Unknown French Crystal set front view
Unknown French Crystal set front panel view
Unknown French Crystal set chassis view
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Récepteur grand public à galène - Unknown - CUSTOM BUILT: France
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 180 x 100 x 140 mm / 7.1 x 3.9 x 5.5 inch
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
