Vulcain 73
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236893
Spiegelskala ( cadran mirroir)!

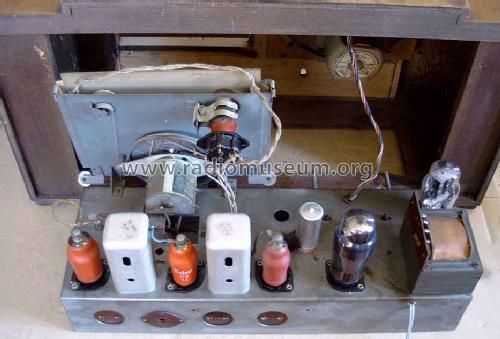

Kondensatoren teils ersetzt!
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

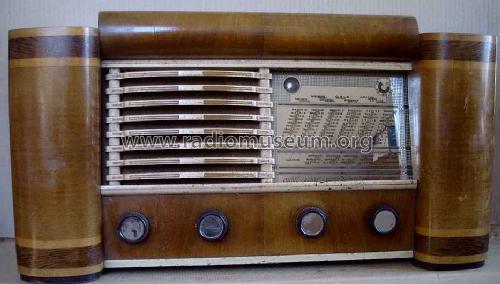

- Model: Vulcain 73 - Unknown - CUSTOM BUILT: France
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 620 x 330 x 260 mm / 24.4 x 13 x 10.2 inch
- Notes
-
4 gammes d'ondes dont 1 bande étalée.
La grille de haut-parleur est similaire à le modèle Arena 557. Imprimation sur le verre du cadran: "Impressions Ravex (Pavex?) No 947 CV 8249.1249 Normalisation SNIR 1948 Plan de Copenhague".
Probablement un kit ou production artesanale.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
