• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123585

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 17EW8 12BE6 12BA6 12BA6 12AV6 50EH5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker

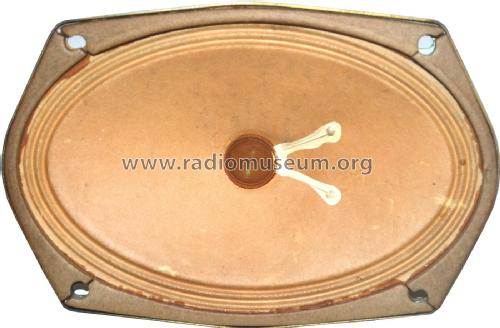

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Wien [Skala MHz kHz, AC/DC] - Unknown - CUSTOM BUILT: Japan

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 335 x 190 x 145 mm / 13.2 x 7.5 x 5.7 inch

• Notes

• European version of an US style model for 110 volts, made in Japan. The model Wien has an auto-transformer for 220 volts, FM dipol screw terminals, on AM scale are mainly south German station names.

  With BC (MW) station names.
  There is also a similar model Wien where the dial has kc and Mc inscription but no station names for BC.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 1140 models, 1002 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Unknown - CUSTOM BUILT: Japan
