- Country
- Spain
- Manufacturer / Brand
- Vanguard; Hospitalet de Llobregat
- Year
- 1965 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 340302
-
- alternative name: Cahué Industrial

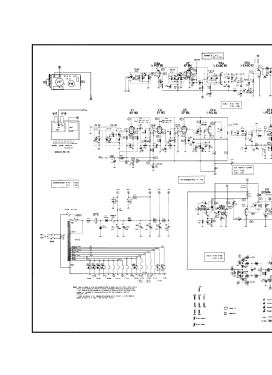

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PC900 PCF801 EF183 EF183 EF184 PCL84 PCF80 PCF80 ECH84 PCL85 PCF802 PL500 PY88 DY87 EF184 EABC80 EL84 AW59-91
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 235-S - Vanguard; Hospitalet de
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Vanguard modelo 235-S
TV B/N 23" con selector rotativo de VHF.
- Mentioned in
- Esquemario TV REDE, Tomo V, 1969
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
