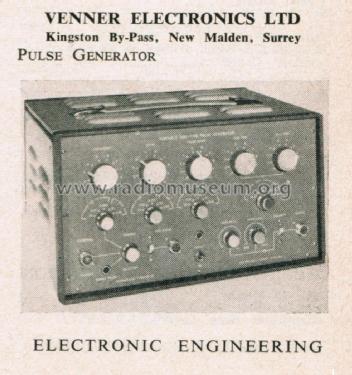

Pulse Generator TSA 648

Venner Electronics Ltd.; New Malden

Data
Forum
Pictures
Collections

  • Year
  • 1964 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 338674

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Other, details in remarks or not known.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Pulse Generator TSA 648 - Venner Electronics Ltd.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Frequency range 10 Hz to 1MHz.
    The main feature of this pulse generator is that every parameter  of the pulse can be altered.
    The generator will operate down to pulse widths of 0.5µsec, the fastest rise time being 10nsec/V.
    Both output pulses have provision for the selection of polarity, the main output being a 10V amplitude pulse at an impedance of 50Ω.

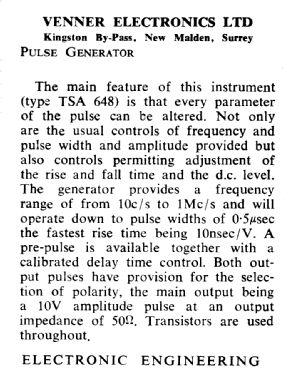

    All other characteristics are in the original attached article.

  • Mentioned in
  • Electronic Engineering, volume 36, March 1964.
