Wide Range Oscillator TSA 625

Venner Electronics Ltd.; New Malden

  • Year
  • 1964 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 345644

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Wide Range Oscillator TSA 625 - Venner Electronics Ltd.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

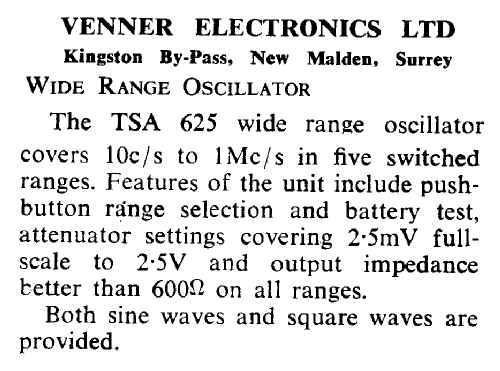

  • The TSA 625 Wide Range Oscillator covers 10 Hz to 1 MHz in five switched ranges.

    Features include:

    • 5 Push button range selection and battery test.
    • Attenuator settings from 2.5 mV to 2.5 V.
    • Output impedance better than 600 Ω on all ranges.
      Both sine waves and square waves are provided.

    Both sine waves and square waves are provided.

    2.5 V maximum sine wave at better than 2% distortion and a square wave with a rise time of 100 nsec.




  • Mentioned in
  • -- Original-techn. papers. (Electronic Engineering volume 36, year 1964, September.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
