- Country
- France
- Manufacturer / Brand
- Visseaux / Télévisso; Lyon / Paris
- Year
- 1976 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 344795
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / AA: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Power out
- 0.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

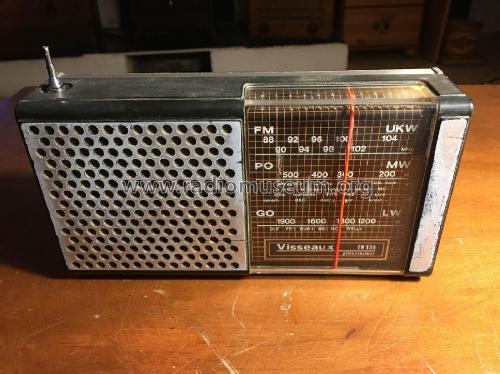

- Model: TR 135 - Visseaux / Télévisso; Lyon /
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 210 x 110 x 60 mm / 8.3 x 4.3 x 2.4 inch
- Notes
-
7 diodes + pont de redressement, antenne cadre ferrite interne + télescopique pour FM.
Equivalent au Sonolor "Amigo"
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Literature/Schematics (1)
- Le grand livre de la TSF
- Author
- Model page created by Vincent Baccialone. See "Data change" for further contributors.
