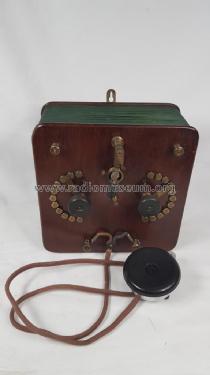

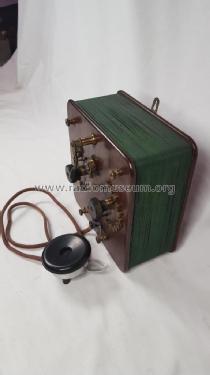

Poste récepteur type Mural 215
Vitus, Fernand; Paris
- Country
- France
- Manufacturer / Brand
- Vitus, Fernand; Paris
- Year
- 1922–1924
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 114918
La Nature 1924, p.163
depliant Vitus Druckzeichen 2620-Imp. Oyon
Hauptkatalog Vitus ca. 1925 Seite 22 (Teil)
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast and LongWave in ONE range.
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Poste récepteur type Mural 215 - Vitus, Fernand; Paris
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 180 x 180 x 85 mm / 7.1 x 7.1 x 3.3 inch
- Notes
-
Poste à galène avec bobinage Oudin, réalisé autour de la boîte même de l'appareil. Fractionnement moyen de manettes à plots.
Montage mural.
- Price in first year of sale
- 140.00 FRF
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 370)
- Literature/Schematics (1)
- La Nature, 1924, p.163
- Literature/Schematics (2)

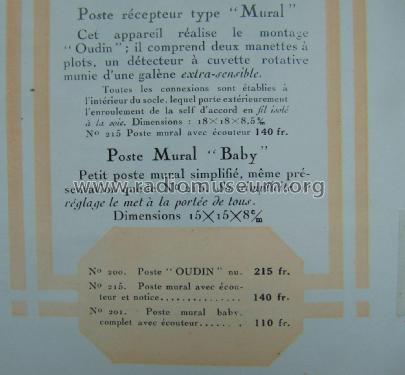

- -- Original prospect or advert
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 110 models, 87 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
