Inconnu - Unknown 3
Vitus, Fernand; Paris
- Country
- France
- Manufacturer / Brand
- Vitus, Fernand; Paris
- Year
- 1934 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 292271
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 3 - Vitus, Fernand; Paris
- Shape

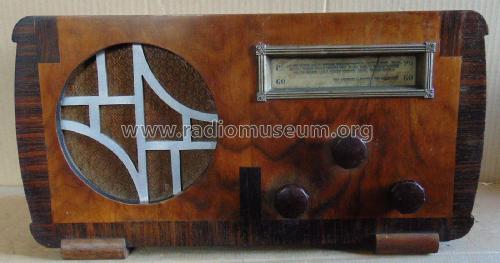

- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 220 x 210 mm / 16.5 x 8.7 x 8.3 inch
- Notes
-

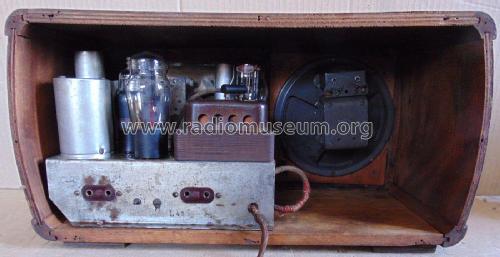

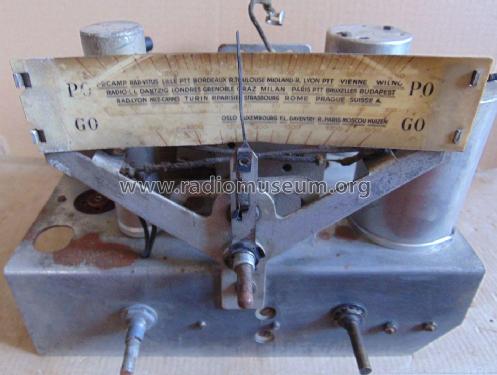

Il est incertain si ce modèle a été fabriqué par Vitus. Le châssis est marqué avec "L46" ou "L48".
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
