• Country
• France

• Manufacturer / Brand
• Vitus, Fernand; Paris

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77989

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• unknown_Tube unknown_Tube unknown_Tube unknown_Tube unknown_Tube unknown_Tube

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Super-mondial - Vitus, Fernand; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 350 x 230 mm / 24.8 x 13.8 x 9.1 inch

• Notes
• Drei HF-Stufen, Audion, zwei NF-Stufen. Zwei Messinstrumente. Preis ohne Röhren.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 450.00 HFl

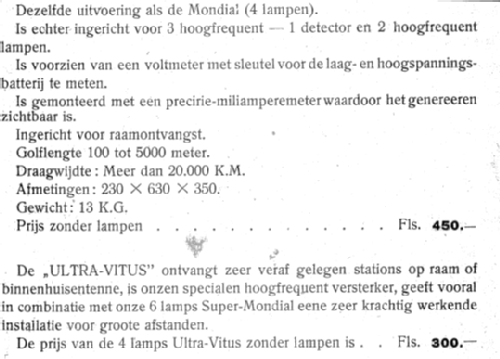

• External source of data
• Catalog RadioZ, Radiotoestellenfabriek ZEGUERS, Maastricht

• Mentioned in
• TSF Antique 1921 à 1927

• Author
• Model page created by Jan Poortman. See "Data change" for further contributors.

• Other Models

• Here you find 110 models, 87 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
