Ultra-Hétérodyne D2 1926, deux grilles
Vitus, Fernand; Paris
- Country
- France
- Manufacturer / Brand
- Vitus, Fernand; Paris
- Year
- 1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115060
Collection privée (réf.: 666)

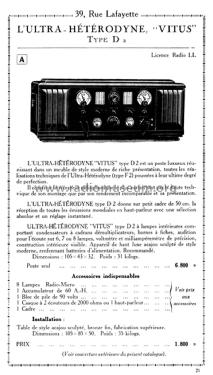

Dépliant modèle
Catalogue Vitus 1927 environ
- Number of Tubes
- 8
- Valves / Tubes
- Radio-Micro Radio-Micro Radio-Micro Radio-Micro Radio-Micro Radio-Micro Radio-Micro Radio-Micro
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 90 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultra-Hétérodyne D2 [1926, deux grilles] - Vitus, Fernand; Paris
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 1050 x 430 x 320 mm / 41.3 x 16.9 x 12.6 inch
- Notes
-
Fonctionne sur 6, 7 ou 8 lampes. Voltmètre et milliampèremètre de précision, construction intérieure visible.
Ébénisterie acajou sculpté de style moderne, renfermant batteries d'alimentation. Table de style acajou sculpté en option.
- Net weight (2.2 lb = 1 kg)
- 31 kg / 68 lb 4.5 oz (68.282 lb)
- Price in first year of sale
- 6,800.00 FRF
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 379)
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
