- Country
- France
- Manufacturer / Brand
- Voxazur (marque), Culmen-Radio, Louis Compain & Cie; Paris
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250413

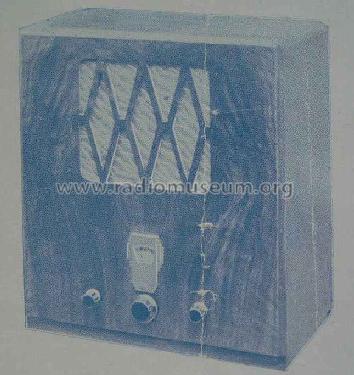

Aus Firmenprospekt/Depliant Voxazur 1932/33
Prospectus Voxazur 1932/33
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-130 or 220-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 334 - Voxazur marque, Culmen-Radio,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 400 x 430 x 230 mm / 15.7 x 16.9 x 9.1 inch
- Notes
-
Poste à 4 lampes (1 HF à écran, 1 détectrice à écran, 1 BF, 1 valve). Monoréglage. Filtre préselecteur. Dispositif pour fonctionner en détection plaque ou en détection grille.
Alimentation soit par 110-130 volts, soit par 220-240 volts, 50 périodes.
- Price in first year of sale
- 1,495.00 FRF
- Mentioned in
- -- Original prospect or advert (Prospectus Voxazur 1932/33)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
