Inconnu - Unknown 1 Combiné
Voxazur (marque), Culmen-Radio, Louis Compain & Cie; Paris
- Country
- France
- Manufacturer / Brand
- Voxazur (marque), Culmen-Radio, Louis Compain & Cie; Paris
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227957
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 235 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 2 W (3 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 1 Combiné - Voxazur marque, Culmen-Radio,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 330 x 380 mm / 18.9 x 13 x 15 inch
- Notes
-

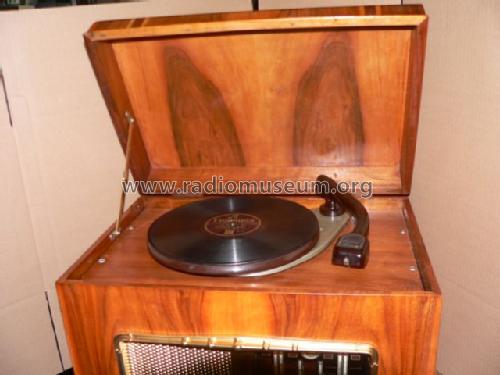

Combiné radio-phono 4 gammes d'ondes dont BE (bande étalée), avec tourne-disque 78 t/min, pointe acier, tête de lecture Collaro (anglais).
Ébénisterie en bois plaqué noyer vernie.
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
