• Country
• Germany

• Manufacturer / Brand
• Wandel & Goltermann; Reutlingen

• Year
• 1953/1954

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 19482

• • alternative name: Wago Wandel & Goltermann

• Number of Tubes
• 5

• Valves / Tubes
• EF41 ECH42 EF41 EBC41 EL41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

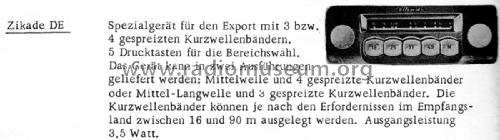

• Model: Zikade DE - Wandel & Goltermann;

• Notes
• Exportgerät. Wie Zikade D als Anbau- oder Einbaugerät lieferbar.
  Sonderausführung mit MW und 4 × KW.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Price in first year of sale
• 335.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1953/54 / Radiokatalog Band 2, Ernst Erb
