524

Watterson Radio Mfg. Co., Dallas, TX

Data
Forum
Pictures
Collections

  • Year
  • 1947 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 294639

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

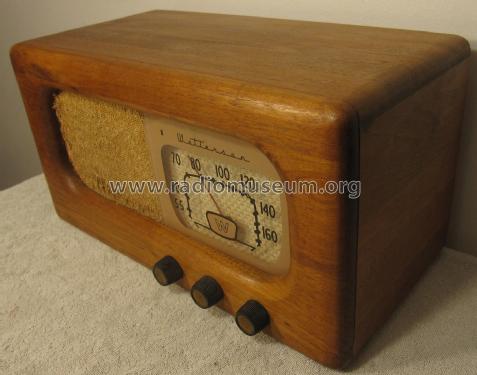

  • Model: 524 - Watterson Radio Mfg. Co.,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 16 x 8.5 x 8 inch / 406 x 216 x 203 mm
  • Notes

  • This is a typical AA5 octal tube radio.  It has the addition of a tone switch which connects a capacitor to the audio circuits and reduces the higher frequency audio.

    There is a coupling coil on the loop antenna to make external antenna connections but the connections are not extended to the back cover of the radio.

    Wooden mounting blocks for the loop antenna and speaker are factory original.

    No service data has been found for this model and the chassis is different than other AA5 Watterson models with service data.

    The pecan wood cabinet was probably made in Texas.  The chassis has a universal look and very likely was purchased from a high volume producer and modified to fit the cabinet.

  • Author
  • Model page created by Jay Kinnard. See "Data change" for further contributors.
