- Country
- France
- Manufacturer / Brand
- Welpa, P. Weber & Cie, Weber Frères; Levallois-Perret, Paris
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 319517

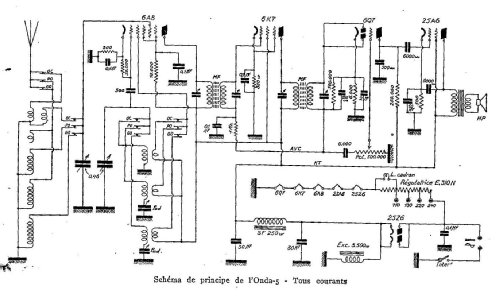

Aus "L'amateur Radio" November 1938.

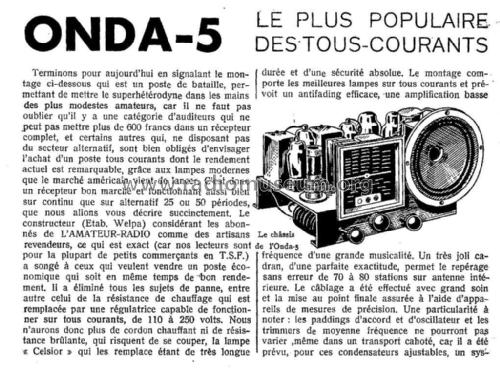

Aus "L'amateur Radio" November 1938.
Aus "L'amateur Radio" November 1938.
Aus "L'amateur Radio" November 1938.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Onda-5 - Welpa, P. Weber & Cie, Weber
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 230 x 230 mm / 16.5 x 9.1 x 9.1 inch
- Notes
-
Prix pour le châssis, un HP Duckson de 17 cm, le jeu de lampes et une ébénisterie.
- Price in first year of sale
- 555.00 FRF
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Dominique Mougenot. See "Data change" for further contributors.
