- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply of California Co. (Western Air Patrol, Wizard); Los Angeles, CA
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 246652
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org

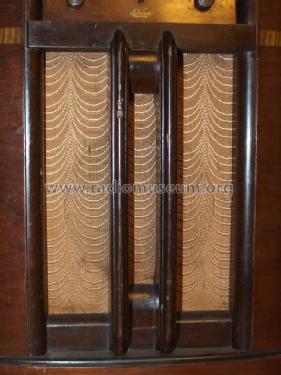

- Model: 1139 - Western Auto Supply of
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 30 x 39 x 16.5 inch / 762 x 991 x 419 mm
- Notes
-
The Western Air Patrol 1139 radio consists of a 10-tube, 3-band chassis, an eye tube, 8 pushbuttons, a 5-position bandswitch, a built-in rotating loop antenna, two auxilliary RCA inputs, and a 12-inch electro-dynamic speaker. The 8 pushbuttons include 2 tone control buttons and 6 station presets.
The five positions on the band switch are as follows:
1. A band - broadcast 550kHz - 1700kHz
2. B band - shortwave 1.7MHz - 5.5MHz
3. C band - shortwave 5.5MHz - 18MHz
4. Television input
5. Phonograph input
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
