Truetone D-2383
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 89152
Beitman

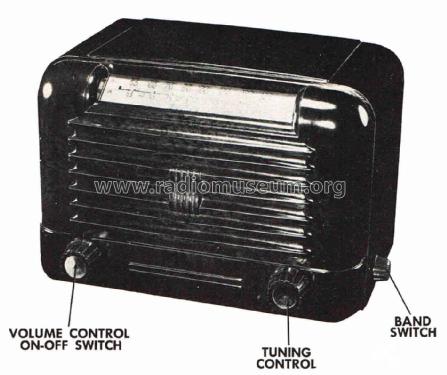

Picture from service manual.

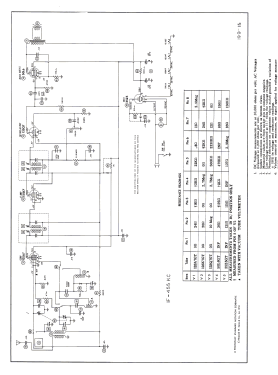

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Truetone D-2383 - Western Auto Supply Co.
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Truetone model D-2383 is an AC-DC operated 2 band AM superheterodyne receiver.
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 13, 1953
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 199, folder 15, dated 4-53)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
