Transistor 7 W720PP
Westinghouse (brand), Sydney
- Paese
- Australia
- Produttore / Marca
- Westinghouse (brand), Sydney
- Anno
- 1961/1962
- Categoria
- Radio (o sintonizzatore del dopoguerra WW2)
- Radiomuseum.org ID
- 299218
- Numero di transistor
- 7
- Principio generale
- Supereterodina (in generale); ZF/IF 455 kHz
- Gamme d'onda
- Solo onde medie (OM).
- Tensioni di funzionamento
- Batterie a secco / 9 Volt
- Altoparlante
- AP magnetodinamico (magnete permanente e bobina mobile) / Ø 2.75 inch = 7 cm
- Materiali
- Plastica (non bachelite o catalina)
- Radiomuseum.org
- Modello: Transistor 7 W720PP - Westinghouse brand, Sydney
- Forma
- Tascabile (portatile molto piccola), < 20 cm
- Dimensioni (LxAxP)
- 6.125 x 3.625 x 2 inch / 156 x 92 x 51 mm
- Annotazioni
-
Westinghouse Model W720PP "Transistor 7" Personal Portable.
This seven transistor personal portable is supplied "gift boxed", with leather carrying case, shoulder strap and earpiece for private listening. Choice of five colours: red, blue, heather, sage green and tan.
Incorporating seven transistors and one diode, powered by a Type 2362 battery giving approximately 100 hours normal playing time. Built-in Ferrite rod aerial; 2¾" permanent magnet speaker which disconnects when earpiece is plugged in.
- Peso netto
- 1 lb 4 oz (1.25 lb) / 0.568 kg
- Prezzo nel primo anno
- 27.30 AUS £

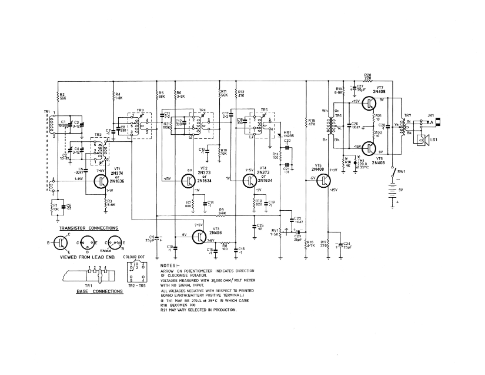

- Letteratura / Schemi (1)
- J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960 Supplement, Page A14. (For AWA B19))
- Letteratura / Schemi (2)
- J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A23. (For AWA B19))
- Letteratura / Schemi (3)
- Mingay's Price Service (Feb 1962 & Aug 1962.)
- Autore
- Modello inviato da Martin Kent. Utilizzare "Proponi modifica" per inviare ulteriori dati.
