H-974TU21 Ch= V-2351-304

Westinghouse El. & Mfg. Co. - see also Canadian W.

Datos

Foro

Imágenes

Colecciones

País
Estados Unidos

Fabricante / Marca
Westinghouse El. & Mfg. Co. - see also Canadian W.

Año
1956 ?

Categoría
Televisión con radio y/o grabadora.

Radiomuseum.org ID
267708

- alternative name: Westinghouse El. Int.

Imágenes
Esquemas

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 1816759) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123641) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123642) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123643) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123644) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123645) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123646) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123647) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123648) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123649) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123650) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123651) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123652) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123654) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123655) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123657) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2123661) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (3)

H-974TU21 Ch= V-2351-304; Westinghouse El. & (ID = 2124186) TV-Radio — Westinghouse El. & H-974TU21 Ch= V-2351-304 (2)

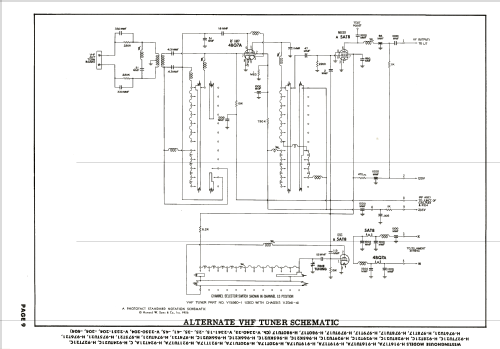

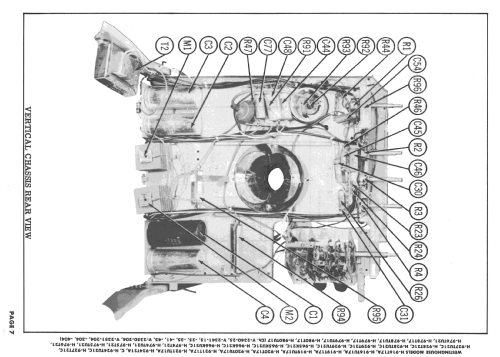

Picture from service manual.

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

Especificaciones técnicas

Numero de valvulas
18

Válvulas
5BK7A 2AF4 5U8 3BZ6 3BZ6 3CB6 12BY7A 5AN8 3BN6 12BK5 3CS6 12B4A 3AL5 7AU7 12CU6 12AX4GT 1B3GT 21ALP4A

Principio principal
Superheterodino con paso previo de RF

Gama de ondas
VHF/UHF (see notes for details)

Tensión de funcionamiento
Red: Corriente alterna (CA, Inglés = AC) / 60 cycles, 117V = 110 -120 Volt

Altavoz
Altavoz dinámico (de imán permanente) / Ø 5 inch = 12.7 cm

Material
Madera

de Radiomuseum.org
Modelo: H-974TU21 Ch= V-2351-304 - Westinghouse El. & Mfg. Co. -

Forma
Sobremesa de cualquier forma, detalles no conocidos.

Anotaciones
The WESTINGHOUSE model H-974TU21 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-tuner V-15860, UHF-tuner V-15870, chassis V-2351-304 and picture tube 21ALP4A. 2X selenium rectifier.
Changes made during late production can be found in " Production Changes Bulletin 178 "
Set 345 Folder 1 date 1-57.

SAMS Photofact shows quite a number of chassis which share the same picture. We believe that the models don't look the same and should have individual pictures, but we have no proof for this. Please send us pictures if you have such a TV by using the contact form.

Documentación / Esquemas (1)
Photofact Folder, Howard W. SAMS (Set 311 Folder 18 dated 3-56)

Documentación / Esquemas (2)
Photofact Folder, Howard W. SAMS (Set 345 Folder 1 dated 1-57)

Autor
Modelo creado por Dirk Taekels. Ver en "Modificar Ficha" los participantes posteriores.
