359
Wevo; Halen
- Country
- Belgium
- Manufacturer / Brand
- Wevo; Halen
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255800

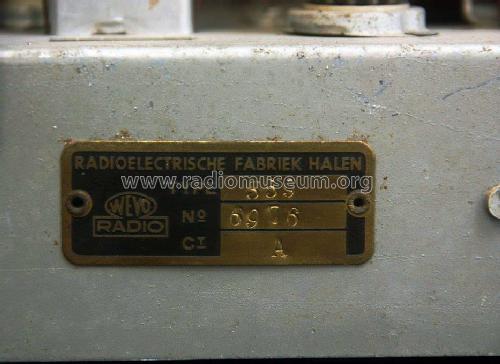

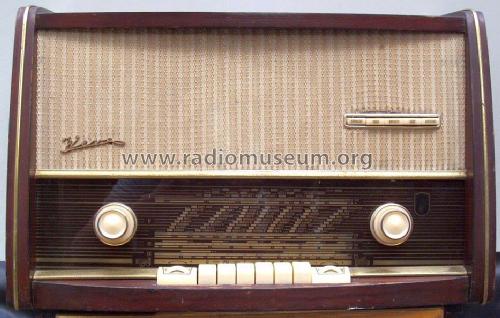

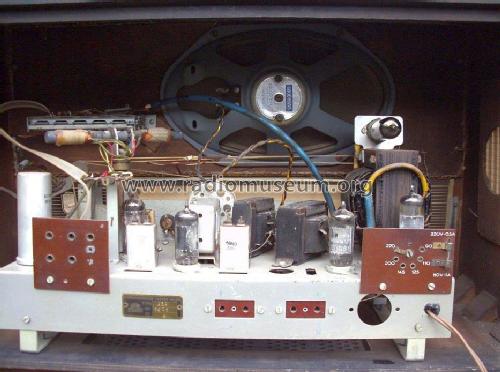

Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderhayden
Picture courtesy of guest Eddy Vanderheyden
Picture courtesy of guest Eddy Vanderheyden
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110;125;145;200;220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 359 - Wevo; Halen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 555 x 375 x 265 mm / 21.9 x 14.8 x 10.4 inch
- Notes
-
The Wevo 359 is an AC operated 6 tube LW, MW and SW receiver. Has tuning eye tube. Has Qty(1) Elliptical PM 25cm x 13cm speaker.
first (top) scale : 190-550 meter
second scale : 1000-2000 meter
third scale : 16-50 meter
fourth scale : 25-32 meter
- External source of data
- Information courtesy of guest Eddy Vanderhayden
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
