• Country
• Belgium

• Manufacturer / Brand
• Wevo; Halen

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213275

• Number of Tubes
• 6

• Valves / Tubes
• ECH41 EF41 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• from Radiomuseum.org
• Model: 652 - Wevo; Halen

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 400 x 165 x 70 mm / 15.7 x 6.5 x 2.8 inch

• Notes

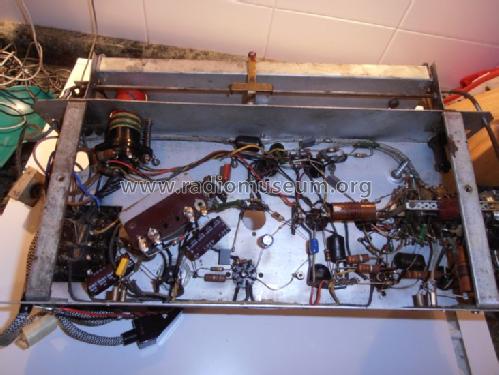

• Senza mobile. Dimensioni riferite al solo chassis. Controllo del volume su staffa metallica esterna.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.

• Other Models

• Here you find 35 models, 27 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wevo; Halen
