5G500 Universal Ch= 5A01

Zenith Radio Corp.; Chicago, IL

Daten

Forum

Bilder

Sammlungen

Land
USA

Hersteller / Marke
Zenith Radio Corp.; Chicago, IL

Jahr
1941 ?

Kategorie
Rundfunkempfänger (Radio - oder Tuner nach WW2)

Radiomuseum.org ID
330171

- anderer Name: Chicago Radio Lab

Bilder
Schaltpläne

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2660470) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2660471) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2660472) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2660473) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2660474) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2065964) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2065965) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2065966) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2065967) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2065968) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2658926) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)
Picture from Rich Post.

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2658807) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (1)
Zenith 5G500 model identification closeup

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 266308) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2659192) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)
Picture from Hans Amberger.

5G500 Universal Ch= 5A01; Zenith Radio Corp.; (ID = 2659193) Radio — Zenith Radio Corp.; 5G500 Universal Ch= 5A01 (2)
Picture from Hans Amberger.

Technische Daten

Anzahl Röhren
5

Röhren
1LA6 1LN5 1LH4 1LB4 117Z6

Hauptprinzip
Superhet allgemein; ZF/IF 455 kHz; 2 NF-Stufe(n)

Anzahl Kreise
6 Kreis(e) AM

Wellenbereiche
Mittelwelle, keine anderen.

Betriebsart / Volt
Netz- / Batteriespeisung

Lautsprecher
Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 5.5 inch = 14 cm

Material
Leder / Stoff / Plastic / Segeltuch über div. Material

von Radiomuseum.org
Modell: 5G500 Universal Ch= 5A01 - Zenith Radio Corp.; Chicago,

Abmessungen (BHT)
15 x 9.8 x 7 inch / 381 x 249 x 178 mm

Bemerkung

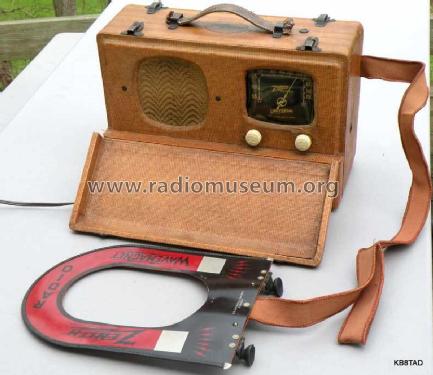

The Zenith 5G500 "Universal" is a three-way portable (AC-DC line or batteries) that also came in several variations with different cover material identifiable with a letter appended to 5G500. This model 5G500 has no appended letter. Its covering is "airplane style" impregnated cloth material similar to canvas. Zenith advertised it heavily based on its patented movable "Wavemagnet" loop antenna. A second patent referred to the hinges allowing swing movement of the suction-cup-to-window attached Wavemagnet. Graphics from the patents show a radio model that resembles the Universal 5G500. The Universal with its wavemagnet is the historical forerunner of the famous Zenith Transoceanic series.

Originalpreis
29.95 USD

Literaturnachweis
Zenith Radio The Glory Years 1936-1945

Literatur/Schema (1)
Collector's Guide to Antique Radios (7th Edition) (page 296)
