H3467R The Hawthorne Ch= 24H20, 10H20

Zenith Radio Corp.; Chicago, IL

Daten

Forum

Bilder

Sammlungen

Land
USA

Hersteller / Marke
Zenith Radio Corp.; Chicago, IL

Jahr
1951 ?

Kategorie
Fernseh-Empfänger mit Radio evtl. Komb.m.Ton-/Bildsp.

Radiomuseum.org ID
266098

- anderer Name: Chicago Radio Lab

Bilder
Schaltpläne

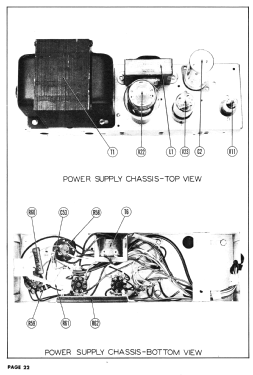

H3467R The Hawthorne Ch= 24H20, 10H20; Zenith Radio Corp.; (ID = 2831101) Fernseh-R — Zenith Radio Corp.; H3467R The Hawthorne Ch= 24H20, 10H20 (3)
