Inconnu - Unknown 2
Zéphyradio, A. Bernier; Paris
- Country
- France
- Manufacturer / Brand
- Zéphyradio, A. Bernier; Paris
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323101
Châssis vue arrière

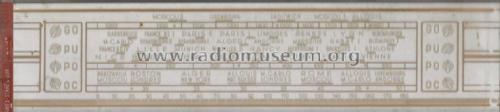

Scan du cadran
Pièces du boîtier démonté
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 2 - Zéphyradio, A. Bernier; Paris
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 300 x 200 x 150 mm / 11.8 x 7.9 x 5.9 inch
- Notes
-
Ce modèle a un boîtier identique au modèle 525, qui se démonte par l'avant. Mais il ne possède que 2 tubes noval, l'ECH42 et l'AZ41 étant des RIMLOCK, contre 4 pour le modèle 525 "nominal".
2 explications possibles :
- soit variante à la production
- soit modification ultérieure
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Author
- Model page created by Philippe Harang. See "Data change" for further contributors.
