• Country
• Austria

• Manufacturer / Brand
• Zerdik; Wien

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11064

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CK1 CBC1 CL4 or CL2 CY1 C1 or C2

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

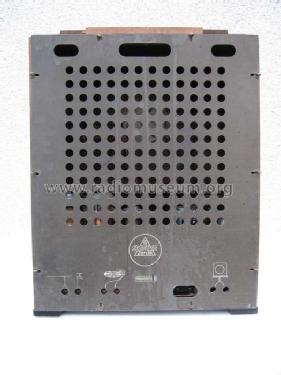

• Model: Selectric U3 UR36 - Zerdik; Wien

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Bandfilter

• Price in first year of sale
• 300.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
