• Country
• Sweden

• Manufacturer / Brand
• Zodiac Svenska Ab; Stockholm

• Year
• 1972

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 171227

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• 2SA562 2SC620 2SC710 2SC712 2SC778 2SC1018 2SD235 2SK19 2SK30 1N4448 1N34 1S34 1S953 M8513

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

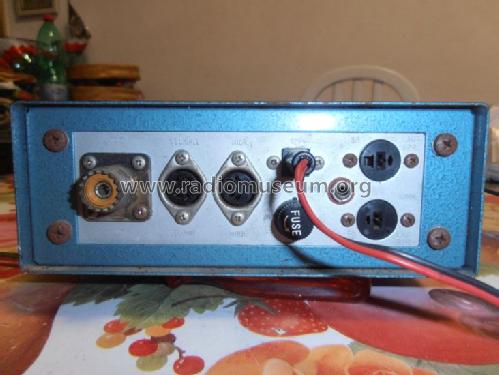

• Model: Kommunikationsradio M-5026 - Zodiac Svenska Ab; Stockholm

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 165 x 63 x 211 mm / 6.5 x 2.5 x 8.3 inch

• Notes

• Stazione CB mobile con 24 canali.
  24 Quarz-Kanäle CB-Mobilfunkgerät.
  24 Xtal drive channel CB transceiver, AM mode, frequency range 26.965 ÷ 27.255.
  Double conversion receiver. PA function.

  24 Transistors, 15 Diodes and 2 Zener diodes, listed one per type and not all.

• Net weight (2.2 lb = 1 kg)
• 2.130 kg / 4 lb 11.1 oz (4.692 lb)

• Literature/Schematics (1)
• Advert mag. CQ Elettronica (Italy) 01/1973

• Literature/Schematics (2)
• -- Original-techn. papers. (Original "Manuale di Servizio" from Elektrotanya.)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
