AGA and Aga-Baltic Radio AB; Sweden

Données
Forum
Images
Collections

  • Année
  • 1942–1944
  • Catégorie
  • Radio - ou tuner d'après la guerre 1939-45
  • Radiomuseum.org ID
  • 18071
    • alternative name: AGA-Baltic Radio AB; Stockholm

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

 Spécifications techniques

  • No. de tubes
  • 4
  • Principe général
  • Super hétérodyne (en général)
  • Circuits accordés
  • 5 Circuits MA (AM)
  • Gammes d'ondes
  • PO, GO et OC
  • Tension / type courant
  • Appareil tous courants (CA / CC)
  • Haut-parleur
  • HP dynamique principe inconnu / Ø 16 cm = 6.3 inch
  • Matière
  • Boitier en bois
  • De Radiomuseum.org
  • Modèle: 332 - AGA and Aga-Baltic Radio AB;
  • Dimensions (LHP)
  • 430 x 183 x 254 mm / 16.9 x 7.2 x 10 inch
  • Poids net
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • Prix de mise sur le marché
  • 360.00 SFR
  • Source extérieure
  • E. Erb 3-907007-36-0
  • Source du schéma
  • Die «Thali Schemasammlung» führt das Modell.
  • Index des illustrations
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.

 Collections | Musées | Littérature

Collections

Le modèle fait partie des collections des membres suivants.

 Forum

Contributions du forum pour ce modèle: AGA and Aga-Baltic: 332

Discussions: 2 | Publications: 7

Dear Radio friends

Here I'm presenting to you a small example of one's love for old radio sets.

 Once upon in my village I was practicing physical exercises, when I suddenly noticed that a "dying set" "asking for assistance" had been thrown down on the ground close to a dustbin.

Then I looked at it and I thought…I thought more and I decided to carry it to my home.

 After a hard work, searching for the right wood pattern to replace the missing cabinet's top (the hardest task), I shaped the wood, and I settled it and I laid it on set.

 After the top placement, I prepared it for the final finishing.

I striped all the old varnish with a sand paper. I applied a light coat of wood stain. I let dry for a long time and then I applied several coats of a peculiar varnish. Here it is the result.

About the electronics:

 It was found only one tube (UBF11). I had to buy the missing tubes in a German site in Internet.

Also the output transformer was damaged (burned).  Winding was replaced, and there it is working.

 The loudspeaker was damaged too. Coil was glued to magnetic core, (rusty problem).

A new cone was replaced by a new one.

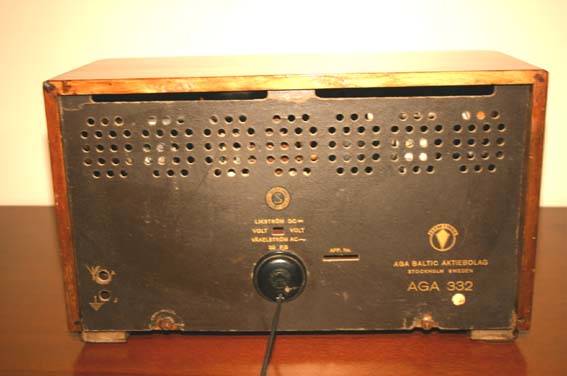

So it is now , this Agabaltic 332 :


Best regard's

Júlio Branco, from Lisbon
