Signal Lamp Holder S.L.82, ZA4201

Arcolectric Switches Ltd.; West Molesey

Data
Forum
Pictures
Collections

  • Year
  • 1938 ??
  • Category
  • Radio part (not a module)
  • Radiomuseum.org ID
  • 356913

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Signal Lamp Holder S.L.82, ZA4201 - Arcolectric Switches Ltd.;
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 43 x 25 x 52 mm / 1.7 x 1 x 2 inch
  • Notes

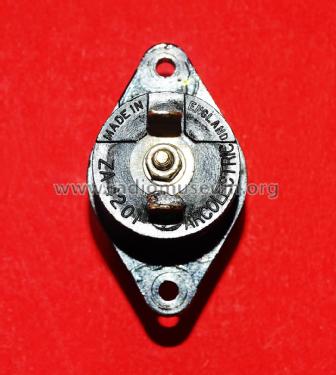

  • The Arcolectric S.L.82 Signal Lamp Holder (British Army VAOS Ref. ZA4201) was used in a great variety of civil and WW II military equipment, ranging from the EOL indicator in the Creed 44 keyboard perforator to the power-on lamps of the R109 and WS No. 52 receivers and the 10S/16149 Noise Generator. It was also specified for use in home-built models, such as a 1961 Practical Wireless signal generator.

    The lamp holder mounts in a panel or chassis with a 7/8" diameter centre hole and fixing screws spaced 1 3/8" apart. It contains an MES bulb holder, and the bulb can be replaced by unscrewing the front lens. Transparent and translucent front lenses were available in a variety of colours. The insulation was flash tested at 1.5 kV AC.

  • Net weight (2.2 lb = 1 kg)
  • 0.016 kg / 0 lb 0.6 oz (0.035 lb)
  • Mentioned in
  • - - Manufacturers Literature (Wireless World, July 1953, Page 32)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
