• Country
• France

• Manufacturer / Brand
• Ariane; Paris

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 331967

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 ECH3 CBL1 CY2

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch

• Material
• Bakelite case

• from Radiomuseum.org

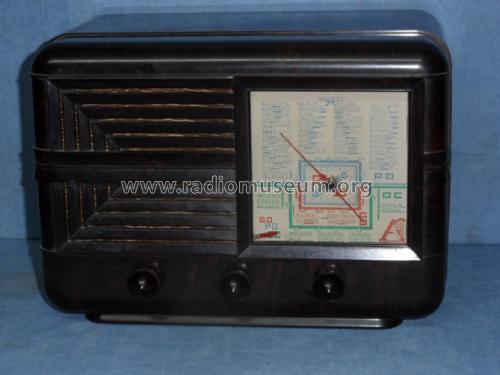

• Model: E133 - Ariane; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 210 x 180 mm / 11.4 x 8.3 x 7.1 inch

• Notes

• Appareil sans transformateur, avec "cordon chauffant".

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by F. Quintana-Calduch. See "Data change" for further contributors.
