4W65H Holz
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 537
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

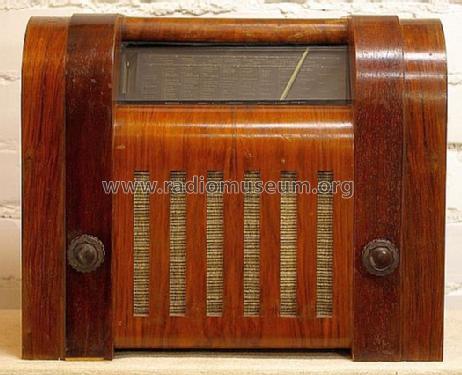

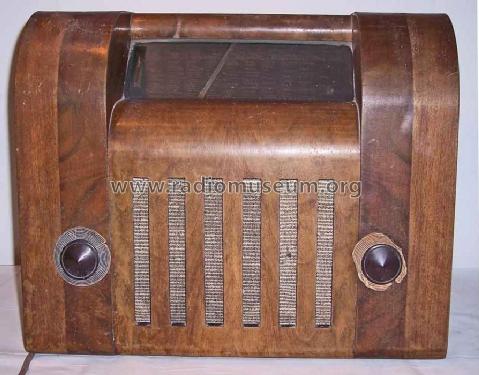

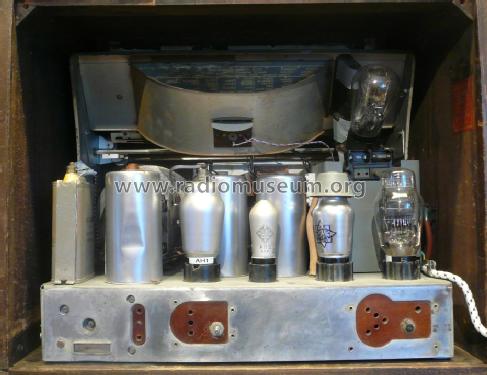

Guter Erhaltungszustand, unrestauriert.

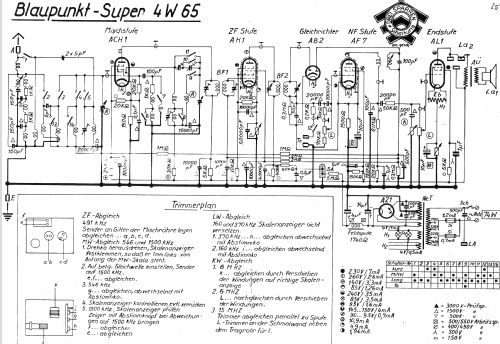

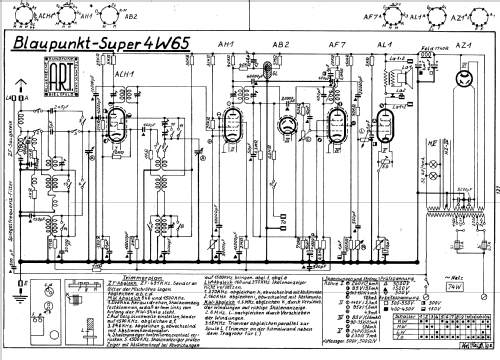

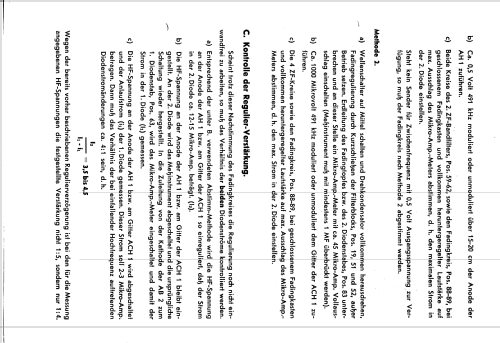

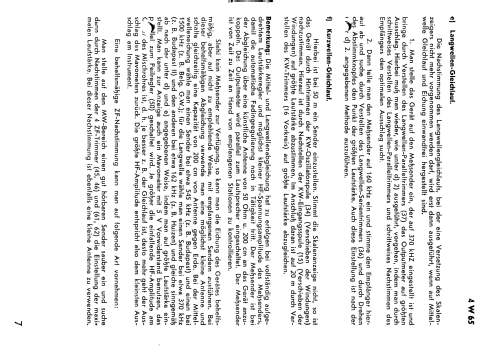

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 491 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4W65H [Holz] - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 464 x 385 x 285 mm / 18.3 x 15.2 x 11.2 inch
- Notes
- Feldstärke-Anzeige
- Price in first year of sale
- 332.00 RM
- Source of data
- Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 3528 models, 3217 with images and 2322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: 4W65H
Threads: 2 | Posts: 5
Dear Rudolf,
I am waiting the new schematic. The wave switch of my device it is not compatible with any other schematic downloaded from Radiomuseum.
I want to thank you one more time and I am waiting the new schematic.
Best regards,
Ion Carabas
Ion Carabas, 11.May.11
Dear collegues,
I am now working at an reconditioning of an radio device Blaupunkt 4W65 Holz. Having and reading the three schematics wich are posted on radiomuseum, I observed the followings, about the way of closing the contacts from wave changer comutator (interruptor).
A. No1 schematic
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |
| Kurz | x | x | x | x | x | x | x | x | x | x | x | |||
| Mittel | x | x | x | x | x | x | ||||||||
| Long | x | x | ||||||||||||
| Ta | x | x | x | x | x | x | x | x | x | x | x | x | x |
No2 Schematic
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |
| Kurz | x | x | x | |||||||||||
| Mittel | x | x | x | x | x | x | x | x | ||||||
| Long | x | x | x | x | x | x | x | x | x | x | x | x | ||
| Ta | x |
No3 Schematic (identical with second schematic)
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | |
| Kurz | x | x | x | |||||||||||
| Mittel | x | x | x | x | x | x | x | x | ||||||
| Long | x | x | x | x | x | x | x | x | x | x | x | x | ||
| Ta | x |
Wich one from the schematics described above represents the reality?
B. The radio device Blaupunkt 4W65H is equipped, instead if magic eye with an tube with neon OSRAM GJR 3. Can someone tell me wich are the alimentation tensions required for function and how are made the conections at the socle?
In the 3 schematics that I mentioned above , this condenser is coupled different (reffered to the condenser 0,2 Mf.)
Ion Carabas, 10.May.11
