Koffer-Super BSK36 (BKS36)

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1205

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• KK2 KF3 KB2 KC1_p8 KC3 KDD1

• Main principle
• Superheterodyne (common); ZF/IF 488 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 150 & 2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

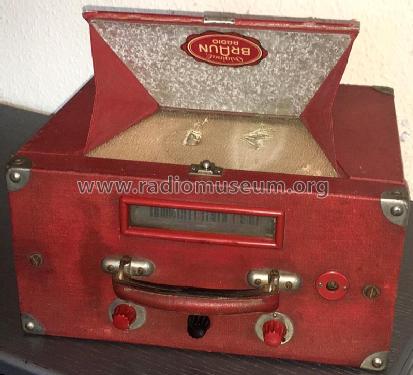

• Model: Koffer-Super BSK36 - Braun; Frankfurt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 280 x 160 mm / 12.6 x 11 x 6.3 inch

• Notes
• Beide Schreibweisen kommen vor: BSK und BKS! Holzgehäuse mit Kunststoffüberzug.

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 212.00 RM

• Source of data
• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Historische Radios (1-5) = zur Verknüpfung mit Modellseiten

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"

• Other Models

• Here you find 1061 models, 931 with images and 652 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
