• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1961–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1383

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EC92 EC92 ELL80 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: R23 Ch= RC9 - Braun; Frankfurt

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1455 x 725 x 385 mm / 57.3 x 28.5 x 15.2 inch

• Notes

• Technische Daten wie Atelier 2, jedoch mit Phono-Chassis Telefunken TW504MB.

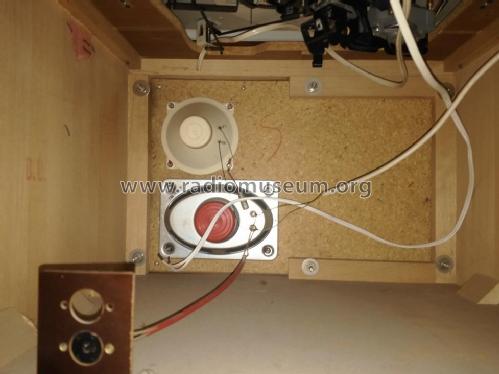

  Es sind 5 Lautsprecher eingebaut, wobei der Tieftonbereich nur links nach vorne und unten abgestrahlt wird, um Resonanzen vom rechts eingebauten Plattenwechsler fern zu halten.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Price in first year of sale
• 1,195.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
