- Country
- Germany
- Manufacturer / Brand
- Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 268114
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common); ZF/IF 454/10700 kHz; 2 AF stage(s); Export model
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

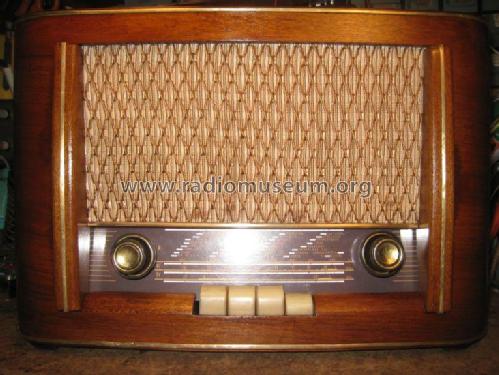

- Model: 500 - Continental-Rundfunk GmbH
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 410 x 260 x 185 mm / 16.1 x 10.2 x 7.3 inch
- Notes
-
Continental 500 ist ein Exportmodell für den italienischen Raum.
Wellenbereiche / bands:
TV 58...69 MHz (sound)
MF 87...100 MHz
MW 575...185 mSiehe auch ähnliches Chassis bei Continental Imperial Comtessa J 250 WU.
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
