• Country
• Romania

• Manufacturer / Brand
• Electronica; București - Bucharest

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166174

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL82 EM80

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220 V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

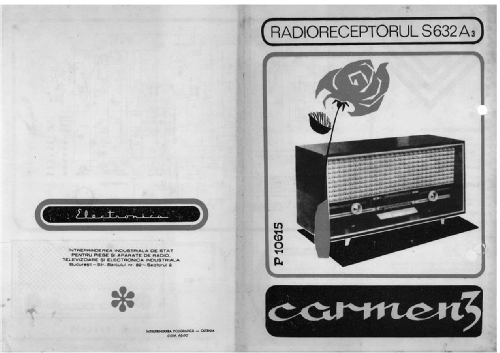

• Model: Carmen 3 S-632A2 - Electronica; București -

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 230 x 175 mm / 14.8 x 9.1 x 6.9 inch

• Notes
• This type of radio was made between 1961 and 1969 in different models as Carmen 1, Carmen 2, Carmen 3 and Carmen 4. The radio presented by me is the last model made as Carmen 3 (S632A2), with a chassis which will be find on Carmen 4 made in 1969, using a diode as rectifier, the only difference is the tube EM80 used in S632A2 model instead EM84 used in S691 A (Carmen 4). The shape of the case of this 2 models is also different.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Laurentiu Jercan. See "Data change" for further contributors.
