• Country
• Romania

• Manufacturer / Brand
• Electronica; București - Bucharest

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186145

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL82 EM84

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org

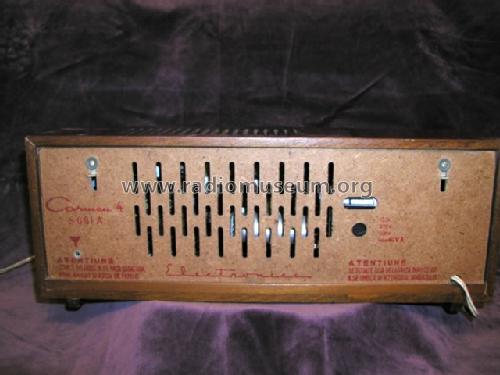

• Model: Carmen 4 S691A - Electronica; București -

• Shape
• Tablemodel, low profile (big size).

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Other type before this -same/similar characteristics - see exchange. (Similar to Carmen 3, different wood case)

• Author
• Model page created by Nicolae Chirtas. See "Data change" for further contributors.

• Other Models

• Here you find 90 models, 69 with images and 60 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
