• Country
• Romania

• Manufacturer / Brand
• Electronica; București - Bucharest

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116724

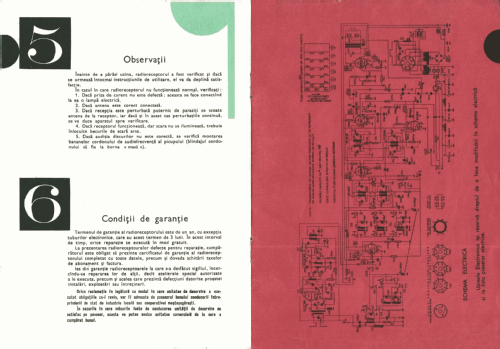

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Darclee 3 S643A - Electronica; București -

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 650 x 395 x 335 mm / 25.6 x 15.6 x 13.2 inch

• Literature/Schematics (1)

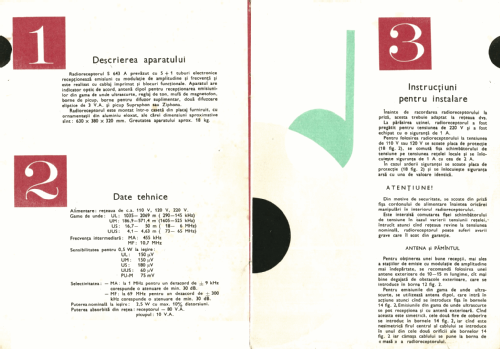

• -- Original-techn. papers. (Scheme de Radioreceptoare 1950-1973)

• Author
• Model page created by Hilmer Grunert. See "Data change" for further contributors.
