• Country
• Romania

• Manufacturer / Brand
• Electronica; București - Bucharest

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 205170

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 19 cm = 7.5 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

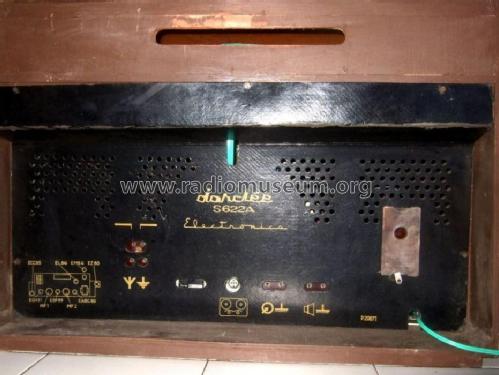

• Model: Darclée S622A - Electronica; București -

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 460 x 350 mm / 25.2 x 18.1 x 13.8 inch

• Notes
• Équipé de tourne-disque Supraphon H20.1 avec 78, 45, 33 1/3, et 16 2/3 tours.

• Net weight (2.2 lb = 1 kg)
• 23 kg / 50 lb 10.6 oz (50.661 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Bekir Yurdakul. See "Data change" for further contributors.
