Enescu 2 S602A11
Electronica; București - Bucharest
- Country
- Romania
- Manufacturer / Brand
- Electronica; București - Bucharest
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347629

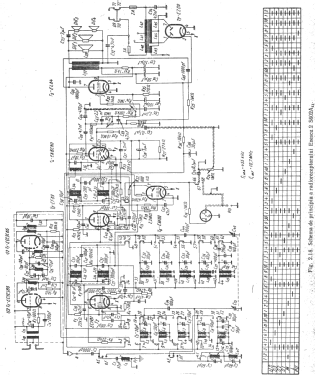

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Enescu 2 S602A11 - Electronica; București -
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 750 x 422 x 300 mm / 29.5 x 16.6 x 11.8 inch
- Notes
-
S602A11 differs from S602A1 by modernized design only.
- Net weight (2.2 lb = 1 kg)
- 20.6 kg / 45 lb 6 oz (45.374 lb)
- Literature/Schematics (1)
- Scheme comentate ale radioreceptoarelor, Tehnica 1965
- Author
- Model page created by Radu Calin DAN. See "Data change" for further contributors.
