Privighetoarea S623A
Electronica; București - Bucharest
- Country
- Romania
- Manufacturer / Brand
- Electronica; București - Bucharest
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347637

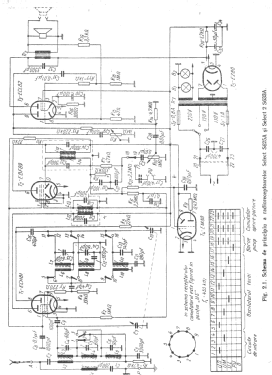

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 1.5 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Privighetoarea S623A - Electronica; București -
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 517 x 370 x 300 mm / 20.4 x 14.6 x 11.8 inch
- Notes
-
Similar with Electronica Select S625A
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Literature/Schematics (1)
- Scheme comentate ale radioreceptoarelor, Tehnica 1965
- Author
- Model page created by Radu Calin DAN. See "Data change" for further contributors.
