- Country
- Romania
- Manufacturer / Brand
- Electronica; București - Bucharest
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309426
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.3 W (0.3 W max.)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: S-632T - Electronica; București -
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 64 x 92 x 28.5 mm / 2.5 x 3.6 x 1.1 inch
- Notes
-

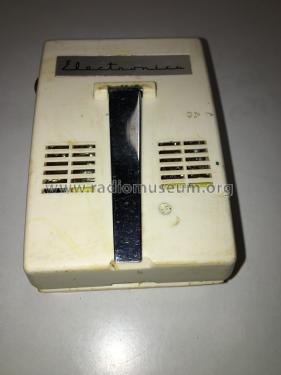

The S-632T portable radio is the first miniaturized electronics device made by Electronica . This model is licensed by Matshushita T-53. Its production was limited.
- Net weight (2.2 lb = 1 kg)
- 0.190 kg / 0 lb 6.7 oz (0.419 lb)
- Literature/Schematics (1)
- -- Schematic (Scheme de Radioreceptoare 1973)
- Author
- Model page created by Ion Mândreş. See "Data change" for further contributors.
