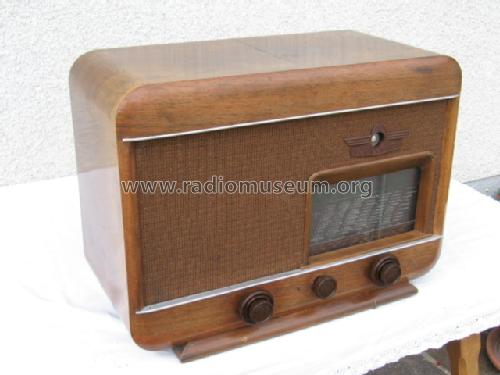

Rex 40W W345A 1939 - 40

• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8774

• • Brand: Hornyphon

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 EL11 AZ11 EFM11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rex 40W W345A [1939 - 40] - Horny Hornyphon; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 355 x 240 mm / 19.1 x 14 x 9.4 inch

• Notes
• Variable Bandbreite
  Parallelgerät zum Zerdik 55W.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 250.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Historische Radios Band IV (216B")

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
