• País
• Australia

• Fabricante / Marca
• Kriesler Radio Company; Newtown (Sydney)

• Año
• 1963

• Categoría
• Radio - o Sintonizador pasado WW2

• Radiomuseum.org ID
• 235035

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

• Numero de transistores
• 6

• Semiconductores
• AF116N AF117N AF117N AC126 OC74 OC74 OA91 OA90

• Principio principal
• Superheterodino en general; ZF/IF 455 kHz

• Gama de ondas
• OM (onda media) solamente

• Tensión de funcionamiento
• Pilas / 9 Volt

• Altavoz
• Altavoz elíptico de imán permanente.

• Potencia de salida
• 0.2 W (unknown quality)

• Material
• Inyectado (se desconoce si bakelita o plástico).

• de Radiomuseum.org
• Modelo: 41-37A Ch= 89-13 - Kriesler Radio Company;

• Forma
• Portátil > 20 cm (sin la necesidad de una red)

• Ancho, altura, profundidad
• 225 x 55 x 130 mm / 8.9 x 2.2 x 5.1 inch

• Anotaciones

• A difficult radio to identify.

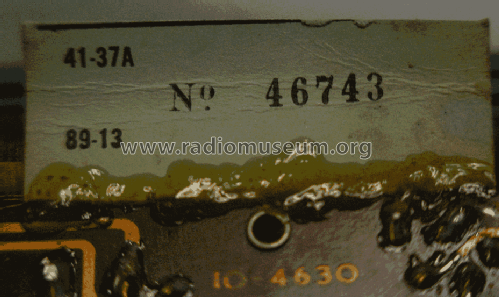

  There are 8 passive component changes from the 89-13 chassis used in model 41-37 and the case still has 41-37 cast in and the circuit diagram included in the case rear also is for the 41-37. The designation 41-37A is on the cardboard piece with the serial number and chassis identification which is attached to the circuit board with one rivet. The only other identification means is by reverse engineering the circuit and comparing the 41-37A schematic with that for the 41-37/40/41. A clue is that one or more components may be mounted on the copper side of the board.

  An alternative transistor component set is OC170 OC169 OC169 OC75 OC74 OC74. The output transistors are not listed as a "Matched Pair" but there is no provision for small bias adjustments.

  Weight is without battery.

• Documentación / Esquemas (1)
• - - Manufacturers Literature

• Autor
• Modelo creado por Brian Wilson. Ver en "Modificar Ficha" los participantes posteriores.
