517
Lemouzy; Paris
- Country
- France
- Manufacturer / Brand
- Lemouzy; Paris
- Year
- 1951–1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107732
www.leboncoin.fr/collection/2480491874.htm
www.leboncoin.fr/collection/2480491874.htm
Dépliant Avril 1952
Dépliant Avril 1952
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115-250 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

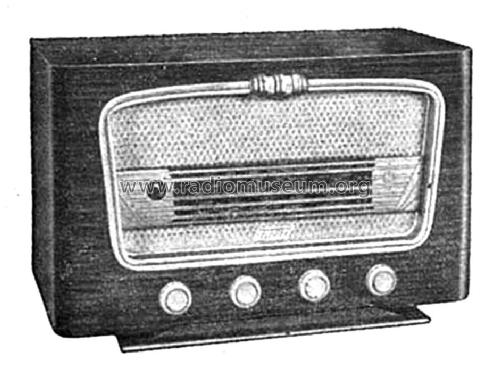

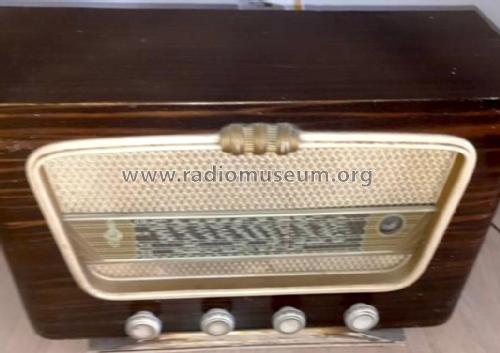

- Model: 517 - Lemouzy; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 270 x 200 mm / 17.3 x 10.6 x 7.9 inch
- Notes
-
4 gammes d'ondes de 16 à 2000 m, dont 1 bande étalée (BE). Tonalité réglable. Prises pour pick-up et HP supplémentaire.
Ébénisterie noyer ou façon macassar avec enjoliveur ivoire et or.
Alimentation secteur alternatif 50 périodes, version 25 périodes sur demande (supplément).
Prix en 1952.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Price in first year of sale
- 23,750.00 FRF
- Mentioned in
- -- Original prospect or advert (Catalogue Avr. 1952, Nov. 1952)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
