- Country
- France
- Manufacturer / Brand
- Marconi (marque), Cie. Fse. du Gramophone; Paris
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 202531
Publicité Aout 1935
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Valves / Tubes
- 6A7 6F7 N41_USA-7-Pin 80
- Number of Transistors
- Semiconductors
- WX6 or. W6_Westector
- Main principle
- Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 20 Ch= 336 - Marconi marque, Cie. Fse. du

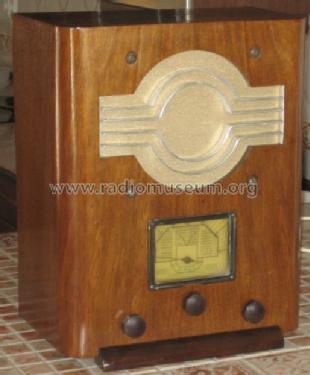

- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 360 x 450 x 220 mm / 14.2 x 17.7 x 8.7 inch
- Notes
-
2 gammes d'ondes : PO de 200 à 500 m et GO de 1000 à 2000 m. Détection par élément cuproxyde Westector.
Équivalent au Pathé 43.
- Net weight (2.2 lb = 1 kg)
- 10.2 kg / 22 lb 7.5 oz (22.467 lb)
- Price in first year of sale
- 1,200.00 FRF
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original prospect or advert (L'Antenne, 01.09.1935)
- Author
- Model page created by Nicolaas van Dijk. See "Data change" for further contributors.
